DMC-100

Measurement parameters
DC voltage: 9.999V/99.99V/999.9V
AC voltage: 9.999V/99.99V/750.0V

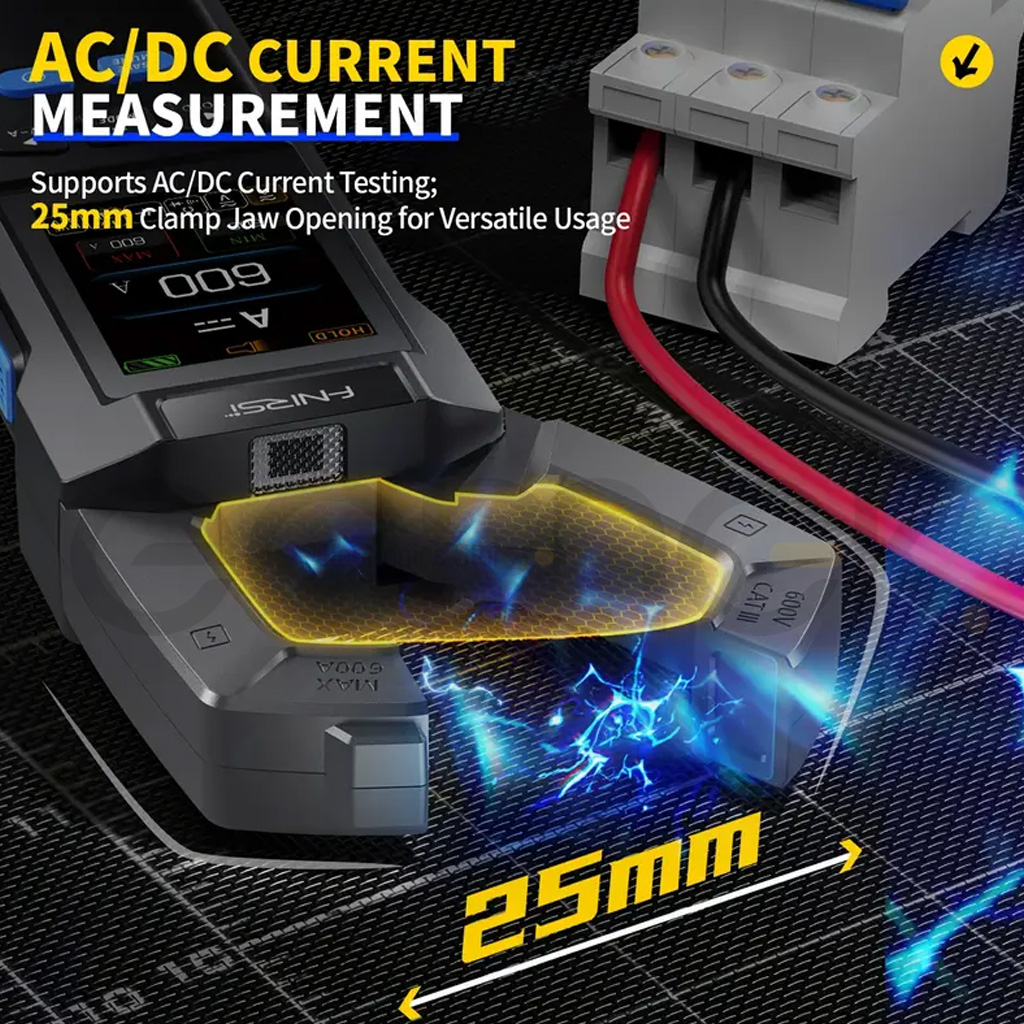

DC current/AC current: 99.99A/600.0A
Resistance: 99.99MΩ/9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω
Capacitance: 9.999mF/99.99mF/999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF
Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz
Temperature: -55~1300℃/-67~2372℉
Diode Measurement: √
On-off test: √
Non-Contact Voltage Check (NCV): √
Zero Fire Wire Check: √
Measuring Mode 1: general measurement
Measuring Mode 2: waveform display

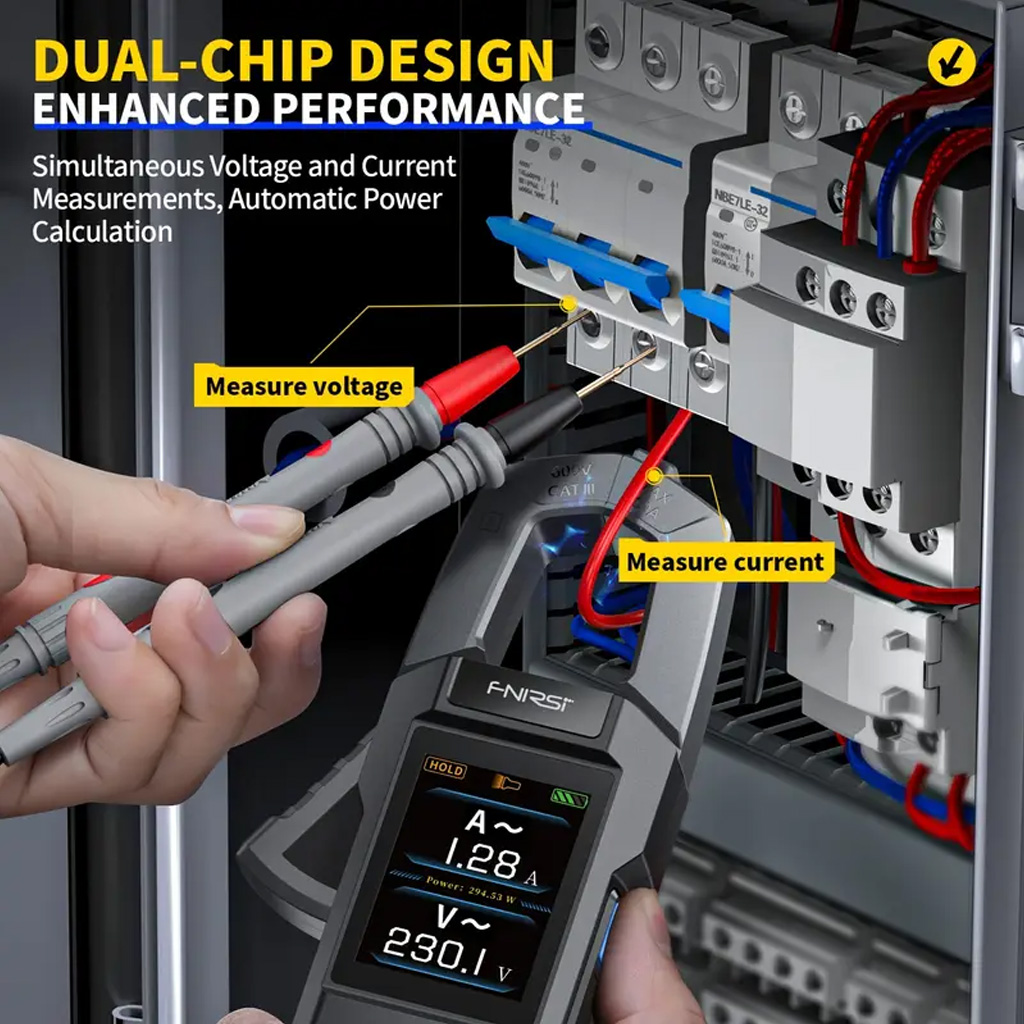

Measuring Mode 3: power measurement
Measurement gear: manual adjustment
Torch: Support
Data Zeroing: Support
Maximum/Minimum Value: Support
Waveform display: Support
Power Calculation: Support
Data Hold: Support
Data Storage and Viewing: Up to 30 groups of data
Language: Chinese/English
Brightness Adjustment: 10-speed adjustment
Temperature unit: ℃/℉
Auto Power Off: OFF/5min/15min/30m
Firmware Upgrade: Support
